Slurry Pump Model K8x2 ( 20A 3/4" )
SPECIFICATION
|
Aluminium
|
Max. Discharge Volume | Rubber family | 50 L/min |
|---|---|---|---|
| Teflon® family | 35 L/min | ||
| Size | Suction/Discharge Port |
3/4" F | |
| Inlet Port | 3/8" F | ||
| Outlet Port | 3/8" F ( SC ) witn muffler | ||
Stainless
cast iron
(Now Printing Picture) |
Max. Size Solids | Less than 3 m/m | |
| Weight | Aluminium | 11.0 Kg | |
| Stainless cast iron | 13.0 Kg | ||
Pump Selection
| K8x2 ( 20A 3/4" ) | |
| (1) Material of Wetted Part | (2) Diaphragms | (3) Ball Valves | (4) Special Design | ||||
| L | Alminium | V | Viton® | Z | Stainless | None | Standard |
| Z | Stainless cast iron | R | Hytrel® | U | Nytrel | B | Anti-abrasion |
| T | Teflon® | T | Teflon® | ||||
| S | Neoplene® | S | Neoplene® | ||||
| EXAMPLE | Material of Wetted Part | Diaphragms | Ball Valves | Special Design | ||||
| K8x2ZTT | - | Z Stainless | - | T Teflon® | - | T Teflon® | - | None |

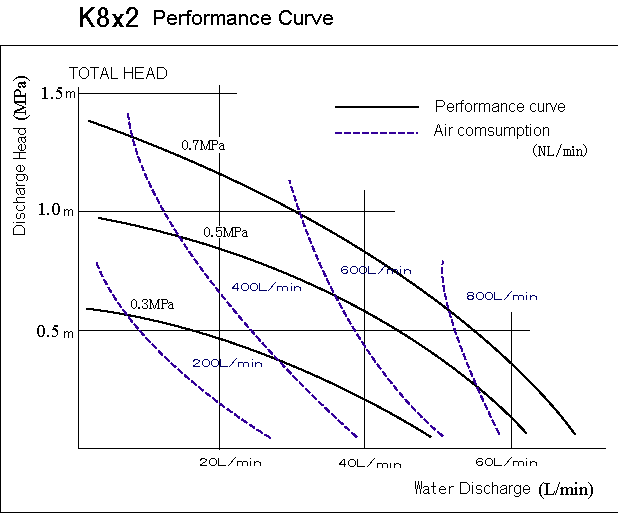

Performance curve
|

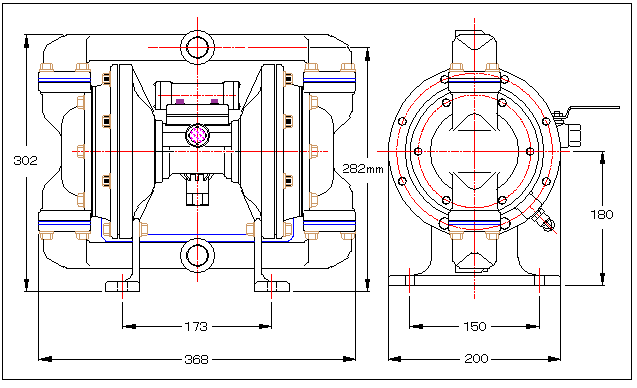

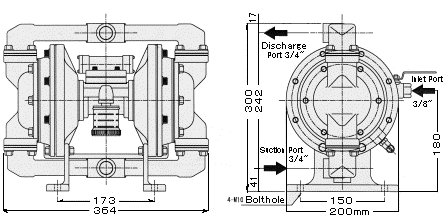

Dimensiolal Drawing
|
||||
Click to enlarge
