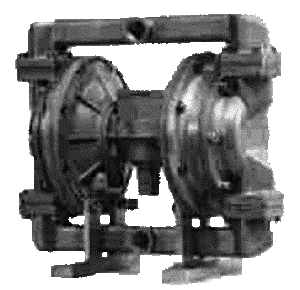

Slurry Pump Model K6x2 ( 15A 1/2" )
SPECIFICATION
|
Aluminium
|
Max. Discharge Volume | Rubber family | 40 L/min |
|---|---|---|---|
| Teflon® family | 28 L/min | ||
| Size | Suction/Discharge Port |
1/2" F | |
| Inlet Port | 1/4" F | ||
| Outlet Port ( Option ) |
ø3mm x 5 ( 3/8" F [ SC ] witn muffler ) |
||
Stainless
cast iron
(Now Printing Picture) |
Max. Size Solids | Less than 2 m/m | |
| Weight | Aluminium | 6.0 Kg | |
| Stainless cast iron | 8.0 Kg | ||
Pump Selection
| K6x2 ( 15A 1/2" ) | |
| (1) Material of Wetted Part | (2) Diaphragms | (3) Ball Valves | (4) Special Design | ||||
| L | Alminium | R | Hytrel® | Z | Stainless | None | Standard |
| Z | Stainless cast iron | T | Teflon® | U | Nytrel | B | Anti-abrasion |
| S | Neoplene® | T | Teflon® | ||||
| S | Neoplene® | ||||||
| EXAMPLE | Material of Wetted Part | Diaphragms | Ball Valves | Special Design | ||||
| K6x2ZTT | - | Z Stainless | - | T Teflon® | - | T Teflon® | - | None |

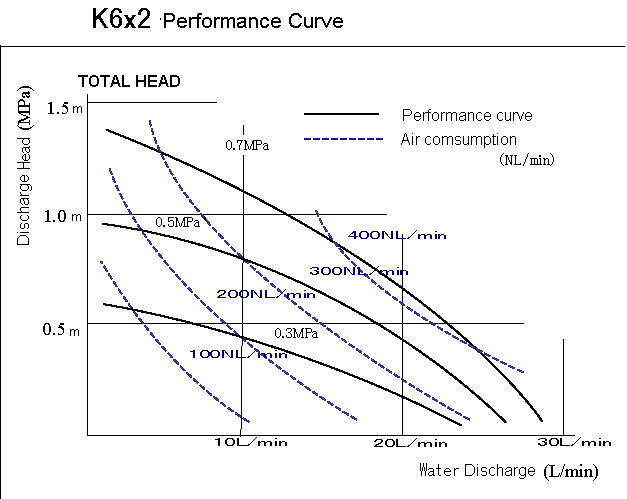

Performance curve
|

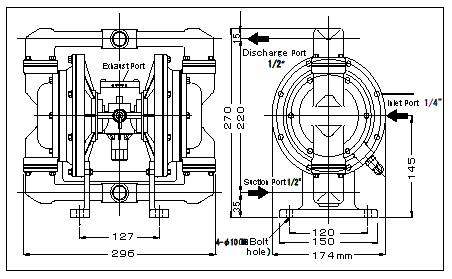

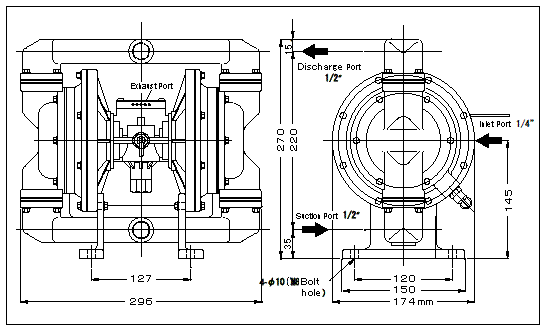

Dimensiolal Drawing
|
||||
Click to enlarge
