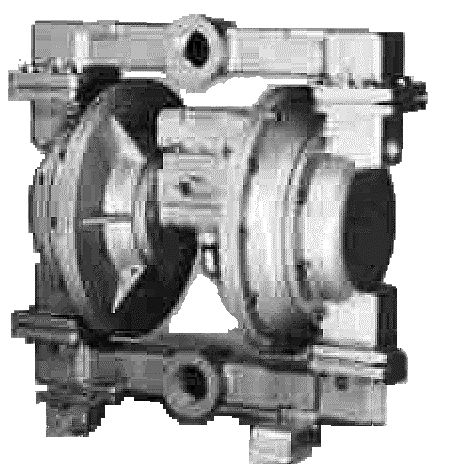

Slurry Pump Model K14x2 ( 40A 1 - 1/2" )
SPECIFICATION
|
Alminium
|
Max. Discharge Volume |
Rubber family |
230 L/min |
| Teflon® family |
- |
| Size |
Suction/Discharge
Port |
1 - 1/2" |
| Inlet Port |
1/2" F |
| Outlet Port |
1/2" F ( SC )
witn muffler |
| Max. Size Solids |
Less than 7 m/m |
| Weight |
Aluminium |
35.0 Kg |
| |
|
Pump Selection
|
(1) Material of Wetted Part |
(2) Diaphragms |
(3) Ball Valves |
(4) Special Design |
| L |
Alminium |
R |
Hytrel® |
Z |
Stainless |
None |
Standard |
| |
|
T |
Teflon® |
U |
Nytril |
B |
Anti-abrasion |
| |
|
S |
Neoplene® |
T |
Teflon® |
|
|
| |
|
|
|
S |
Neoplene® |
|
|
| |
| EXAMPLE |
Material of Wetted Part |
Diaphragms |
Ball Valves |
Special Design |
| K14x2ZTT |
- |
Z Stainless |
- |
T Teflon® |
- |
T Teflon® |
- |
None |

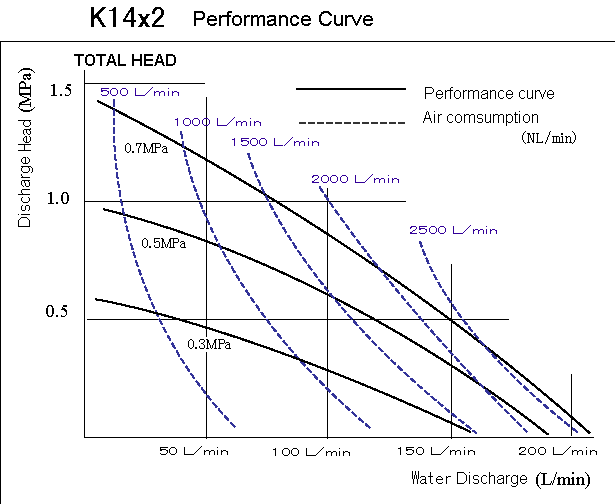

Performance curve
Click to enlarge
|

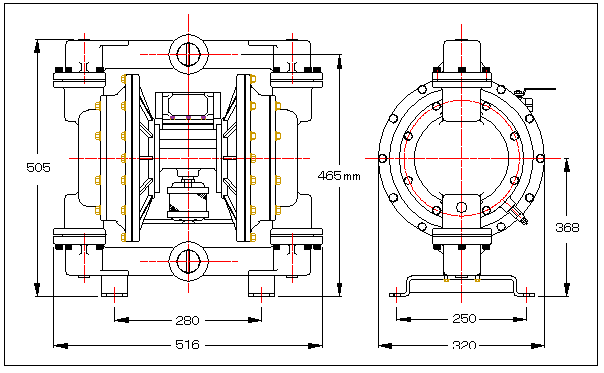

Dimensiolal Drawing
|
